Model

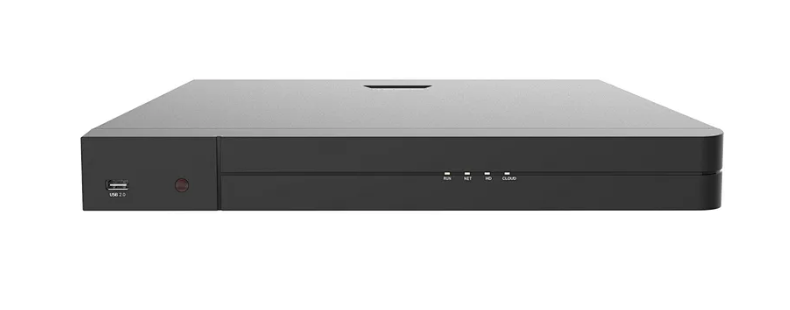

NVR-U 16CH 16P 4K

Video/Audio Input

IP Video Input

16-ch

Two-way Audio Input

1-ch, RCA

Network

Incoming Bandwidth

160Mbps

Outgoing Bandwidth

96Mbps

Remote Users

128

Protocols

P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

HDMI/VGA Output

VGA:1024X768@60,1280X720@60,1280X1024@60,1920X1080@50,1920X1080@60

HDMI:4k(3840x2160@30),4k(3840x2160@60),1024X768@60,1280X720@60,1280X1024@60,1920X1080@50,1920X1080@60

Recording Resolution

8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Audio Output

1-ch, RCA

Synchronous Playback

16-ch

Corridor Mode Screen

3/4/5/7/9/10/12/16

Decoding

Decoding format

Ultra265/H.265/H.264

Live view/Playback

8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability

2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30

Hard Disk

SATA

2 SATA interfaces

Capacity

up to 10TB for each disk

Smart

VCA Detection

Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking

VCA Search

Face search, Behavior search

Statistical Analysis

People counting

External Interface

Network Interface

1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface

USB Interface

Front panel: 1 x USB2.0, Rear panel: 1 x USB2.0

Alarm In

4-ch

Alarm Out

1-ch

PoE

Interface

16 independent 100Mbps PoE network interfaces

Max Power

Max 30W for single port

Max 240W in total (15W for each)

Supported Standard

IEEE 802.3af/at

General

Power Supply

220V AC

Power Consumption: ≤9 W (without HDD)

Working Environment

-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)

Dimensions(W×D×H)

380mm ×315mm × 49.1mm (15.0" × 12.4" ×1.9”)

Weight (without HDD)

≤2.4kg (5.29 lb.)
