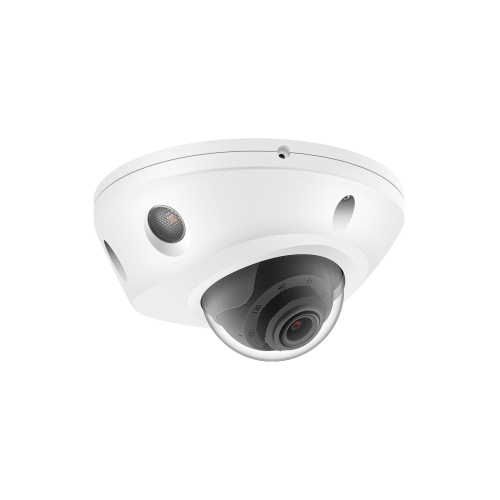

6MP Dual Light Mini Vandal proof Dome POE IP Camera
1/3" CMOS Sensor
6MP HD Resolution Output
Face Detection, Human & Vehicle Detection, Line Crossing, Area Entry/Leaving Detection, Area Intrusion Detection
Low illumination 0.01Lux
Day/ Night (ICR), AWR, 2D/3D-DNR, IR-CUT
WDR, Motion Detection, Privacy Mask, Flip
RTSP and Onvif 23.12 Compatible
H.265/ H.264 Dual-stream Media Server
Easy-to-use P2P Cloud Service
Multi web browser, PC Client, Mobile APP, Remote access
RJ45 100mbps Network Port, IEEE802.3af PoE
Lightning Protection 4000V
Strong Water-proof Housing, IP67 and IK10 vandal proof
With built in microphone ,with reset button
With SD card slot, support up to 512GB Micro SD card
2pcs IR LEDs & Warm dual Lights, Light Distance:10-15M,
three light Modes:
Mode 1: Smart Dual Light
Mode 2: Pure Infrared Light
Mode 3: Pure White Light
| Model | IPCY UFO 6MP DL |
| Camera | |
| Image Sensor | 1/3" GC4653 CMOS |
| Soc Chip | Sigmastar SSC377D |
| Effective Pixels | 3072(H)×2048 (V) |
| Exposure Shutter | AUTO/Manual: 1/10s ~ 1/8000s, Max. Shutter speed adjustable |
| Day/Night | Auto(Active/passive/schedule)/Day/Night, switch threshold, sensitivity |
| Image Adjust | Brightness,Saturation,Sharpness,Contrast,Denoise (0-100%) adjustable |
| White Balance | AWB/MWB |
| WDR | 100db WDR |
| Light Mode | Smart(dual-light) / Pure Infrared / Pure White light, adjustable |
| Light Control | Auto/Manual, Brightness level (0-100%) adjustable |
| DNR | 2D/3D DNR |
| Encode | |
| Video Standard | H.264/H.265 |
| Video Resolution | Main Stream: |
| 25fps@6MP(3072x2048),30fps@5MP(2592x1944)/4MP(2560x1440)/3MP(2304x1296)/1080P/720P | |
| Sub stream: 10fps@720P,30fps@D1(704x576)/(720x480)/VGA(640x480)/QVGA(640x360) | |
| Video Bitrates | Main stream: 64kbps-8Mbps |
| Sub stream: 64kbps-2048kbps | |
| VBR/CBR , quality(1-9), GOP(1-128) | |
| Image Rotation | 0 / 90 / 180 / 270 degree adjustable |
| Border Crop | X crop, Y crop |
| Image Mirror | horizon / vertical / horizon&vertical adjustable |
| OSD Overlay | Font size(1-4), position,Time, Title, AM/PM, Color, User OSD, Alarm OSD |
| Privacy Mask | 4 areas |
| Region of Interest | ROI: Each stream support 8 areas |
| Audio Standard | G.711-u/G.711-a/AAC/PCM, AEC |
| Built-in Mic | Yes |
| Led | |
| Light | 2pcs Dual light LEDs(IR&Warm Lighting) |
| Light Distance | 10-15M |
| Lens | |
| Focal length | F1.6 2.8 mm Fixed Lens |
| Language | |
| English, simplified Chinese, Chinese Traditional, Japanese, Korean, German, Polish, Italian, Turkish, Ukraine, Russian, etc. | |
| Smart Detection | |
| Motion Detection | Yes |
| Digital IO Alarm | 1 pair Alarm-in/Alarm-out, normally open/normally close |
| Human & Vehicle Detection | support |
| Cross Line Detection | support |
| Perimeter protection | support |
| Face Detection | support |
| Target Detection Type | Human Shape, vehicle, non-motor vehicle, Pet, Face (32px-800px) |
| Trigger Action Linkage | Snapshot, Record, Relay, White LED Flash, Email, FTP, NAS storage (optional) |
| Simultaneous Detection | Maximum 16 targets simultaneous detection |
| Storage Type | Schedule/Trigger: Email, FTP, NAS |
| Network Services | |
| Protocol | HTTP(s)/RTSP/FTP/SMTP/DHCP/NTP/DST/RTP/RTMP/P2P/HiK/IPv4/IPv6/NFS |
| P2P Mobile APP | Android, IOS |
| Web Access | IE, Firefox, Chrome, Edge, Safari, etc. |
| PC Tool | Windows, Mac |
| ONVIF | 23.12 compatible (profile S G T M) |
| General | |
| Network Port | 1-RJ45, 100Mbps, POE optional |
| Power Supply | 12 VDC ± 10% |
| Power Consumption | < 8 W |
| Operating Temp. | -20℃-(+60)℃, 10%-90%RH |
