TD-9554E3B
TD-9554E3B DOWNLOAD

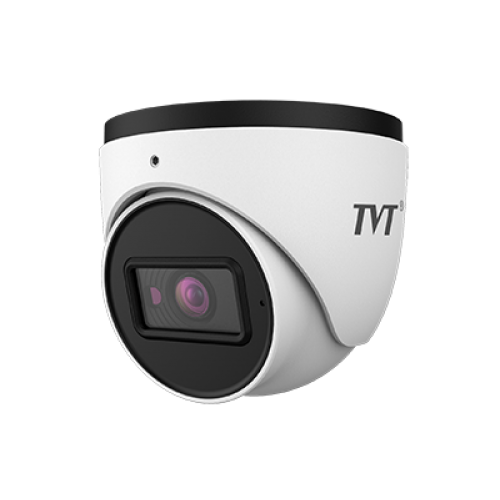

5MP Network IR Water-Proof Dome Camera
TD-9554E3B(D/PE/AR2) Fixed lens: 2.8 mm,3.6 mm
| Model | TD-9554E3B | |||
| Camera | ||||
| Image Sensor | 1 / 2.7 "CMOS | |||
| Image Size | 2592 × 1944 | |||
| Electronic Shutter | Auto/manual; manual mode: 1 / 3s ~ 1 / 100000 s | |||
| Iris Type | Fixed Iris | |||
| Min. Illumination | 0.02 lux@F1.6,AGC ON; 0 lux with IR | |||
| Lens | 2.8 mm@F1.6, horizontal FoV: 99.87°; vertical FoV: 70.36°; diagonal FoV:120° 3.6 mm@F1.6, horizontal FoV: 80°; vertical FoV: 58°; diagonal FoV:108° | |||
| Focus | Fixed | |||
| Lens Mount | M12 | |||
| Day & Night | ICR | |||
| Wide Dynamic Range | 120dB | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Defog | Yes | |||
| S/N Ratio | ≥50dB | |||
| Digital NR | 3D DNR | |||
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360° | |||
| Image | ||||
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG | |||
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile | |||
| Resolution | 5MP (2592×1944 ), 4MP (2592×1520), 2K (2560×1440), 3MP(2304×1296 ), 1080P (1920×1080), 720P (1280×720 ), D1, CIF, 480×240, VGA(640 × 480) | |||
| Main Stream | 5MP/4MP/2K/3MP/1080P / 720P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) HFR mode: 1080P / 720P( 60Hz : 1 ~ 60fps; 50Hz: 1~50fps ) | |||
| Sub Stream | 720P/D1/CIF/VGA/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) | |||
| Third Stream | D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) | |||
| Bit Rate | 64 Kbps ~ 8 Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Audio Compression | G711A / U | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser | |||
| ROI | Each ROI to be configured separately | |||
| Intelligent Analytics | ||||
| Smart Event | Line crossing, region intrusion/entrance/exiting, loitering detection, illegal parking detection, abandoned/ missing object detection | |||
| Statistics | Target counting by line/area, heat map | |||
| Exception Detection | Scene change, video blur and abnormal color detection, audio exception | |||
| Face Detection | Face detection and face capture | |||
| Video Metadata | Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 5 motor vehicle features and 1 non-motor vehicle feature | |||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 55.16m(180.97ft) | 22.06m(72.37ft) | 11.03m(36.18ft) | 5.52m(18.11ft) |
| 3.6mm | 70.14m(230.11ft) | 28.06m(92.06ft) | 14.03m(46.03ft) | 7.01m(22.99ft) |
