TD-9545E4-PA
TD-9545E4-PA DOWNLOAD

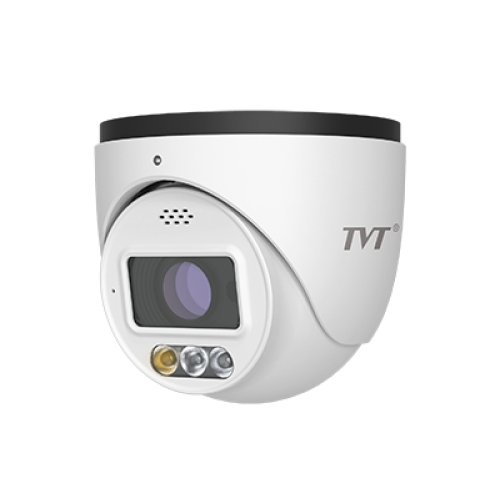

4MP Dual-illumination Turret Network Camera
TD-9545E4-PA(D/PE/AW3) Fixed lens ：2.8 mm ，3.6 mm
TD-9545E4-PA(D/AZ/PE/AW3) Motorized lens ：2.7~13.5mm
| Model | TD-9545E4-PA | |||
| Camera | ||||
| Image Sensor | 1 / 2.9 "CMOS | |||
| Max. Resolution | 2688 × 1520 | |||
| Electronic Shutter | 1 / 3s ~ 1 / 100000 s | |||
| Iris Type | DC Iris | Fixed Iris | ||
| Min. Illumination | 0.003 lux @F1.6, AGC ON; 0 lux with illumination on | |||
| S/N Ratio | ≥50dB | |||
| Lens | 2.7~13.5mm@F1.6, H.FoV:99° ~31°; V.FoV: 53° ~17°; D.FoV: 115° ~35° | 2.8 mm@F1.6, H.FoV: 101°; V.FoV:55°; D.FoV:120°; 3.6 mm@F1.6, H.FoV:85°; V.FoV: 44°; D.FoV:102° | ||
| Focus | Motorized | Fixed | ||
| Lens Mount | Φ14 | M12 | ||
| Wide Dynamic Range | 120dB | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Defog | Yes | |||
| Digital NR | 3D DNR | |||
| EIS | Yes | |||
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360° | |||
| Image | ||||
| Video Compression | Main stream: H.265S/ H.265+/ H.265/ H.264S / H.264+ / H.264 Sub/Third stream: H.265+/ H.265 / H.264+ / H.264/ MJPEG | |||
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile | |||
| Resolution | 4MP (2688×1520),2K (2560×1440), 1080P (1920×1080), 720P (1280×720 ), D1, VGA (640 ×480), 640 ×360, CIF, 480×240 | |||
| Main Stream | 4MP/2K/1080P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) | |||
| Sub Stream | 1080P/720P/D1/VGA/640 ×360/CIF/480×240(60Hz:1~30fps; 50Hz:1~25fps) | |||
| Third Stream | 720P/D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) | |||
| Bit Rate | 32 Kbps ~ 8 Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Audio Compression | G711A / U | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast,Wide Dynamic, Sharpness, Image Flip, Image Mirror, NR, etc. adjustable through client software or web browser | |||
| ROI | 8 ROI, each ROI to be configured separately | |||
| Interfaces | ||||
| Network | RJ 45 (10/100 Base-T) | |||
| Video Output | No | |||
| Audio | 1CH audio input; 1CH audio output; 1CH built-in microphone; 1CH built-in speaker | |||
| Storage | Built-in micro SD card slot; up to 512G | |||
| Reset | Yes | |||
| Alarm | 1CH alarm input; 1CH alarm output | |||
| Intelligent Analytics | ||||
| Smart Event | Line crossing/ region intrusion/entrance/exiting (human/vehicle classification), loitering detection, illegal parking detection, abandoned/missing object detection, people gathering detection, heat map | |||
| Statistics | Target counting by line/area | |||
| Exception Detection | Scene change, video blur and abnormal color detection, audio exception | |||
| Face Detection | Face detection and face capture | |||
| Video Metadata | Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 4 motor vehicle features and 1 non-motor vehicle feature | |||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 58m(190ft) | 23m(75ft) | 12m(39ft) | 6m(19ft) |
| 3.6mm | 75m(246ft) | 30m(98ft) | 15m(49ft) | 8m(26ft) |
| 2.7~13.5mm(W) | 60m(200 ft) | 24m(80ft) | 12m(39ft) | 6m(20ft) |
| 2.7~13.5mm(T) | 203m(667ft) | 81m(266ft) | 40m(133ft) | 20m(66ft) |
| Functions | ||||
| Remote Monitoring | Web Client/TVT NVR/NVMS/mobile APP | |||
| Web Browser | Chrome 92.0+/Edge 92.0+/Firefox 91.0+/Safari 13.1+ | |||
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission | |||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, FTP, PPPoE, DDNS, SMTP, SNMP, HTTP, 802.1x, UPnP, HTTPS, HTTP POST, P2P, QoS | |||
| Interface Protocol | ONVIF Profile S/G/M/T | |||
| API&SDK |
| |||
